Steel tarps, hardware counted before they ship

In short. Specify the cover geometry, fabric, seams and hardware together. Record D-ring and grommet counts as well as their positions and supports. A count checks completeness; it does not establish assembly strength. Agree the drawing, sample and reception checks before production.

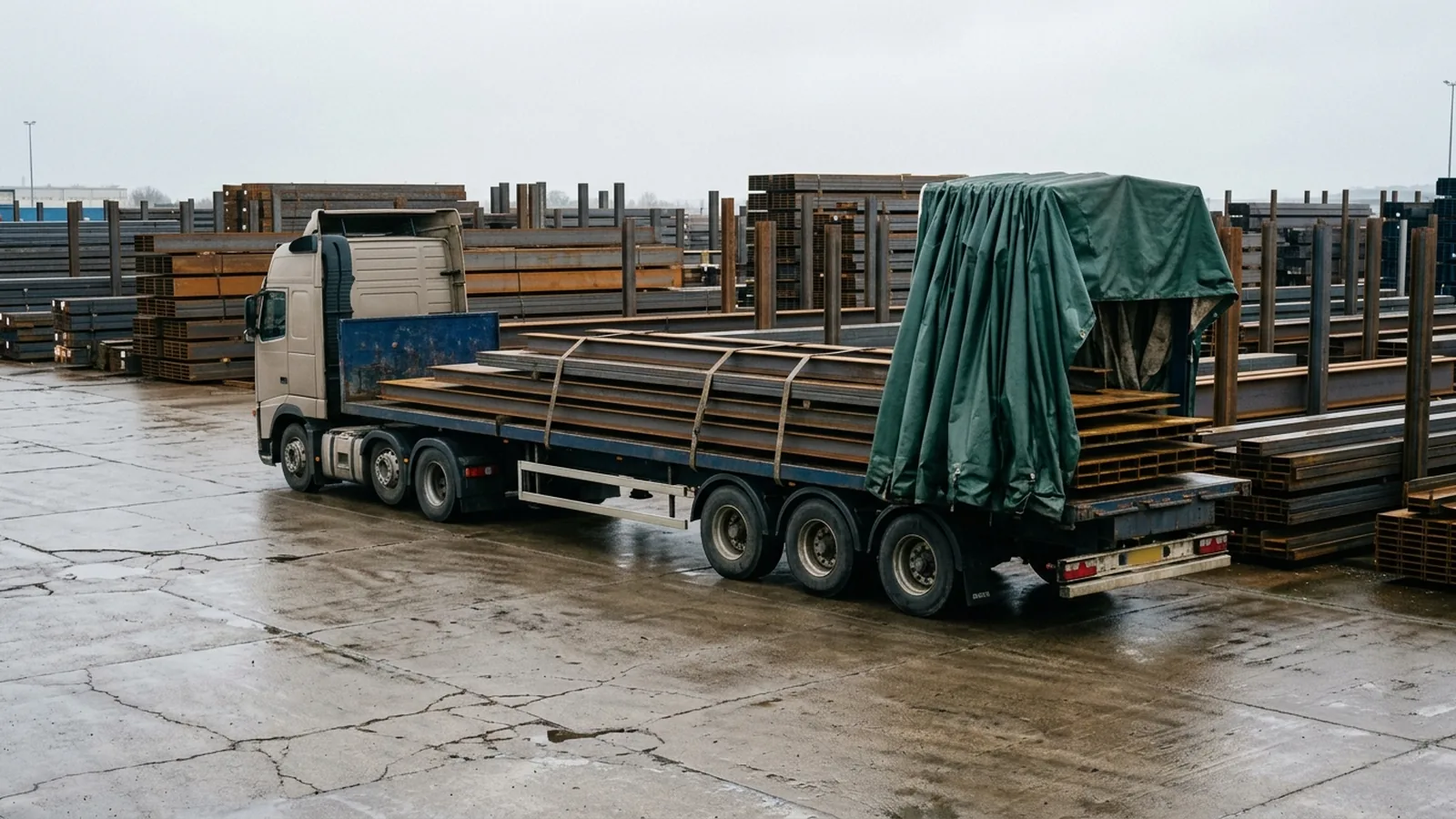

A flatbed trailer in a steel yard carrying a low load of stacked plate and stock, with a tarp folded back over one end.
Illustration Steel plate, beams, pipe and other low flat loads

How to choose steel tarps for your loads

Measure the load width, the length to cover and the height above the trailer deck. Flat width must cover the top plus the drop on both sides. Check the published drop separately: a tarp can be wide enough overall and still have too little side coverage.

For steel, state the load shape and any mixed loads. The word steel does not choose the drop or the D-ring rows for you. Calculate the flat size and compare published steel tarps.

For a fleet order, use the loads you regularly cover rather than the trailer dimensions alone. Keep the same dimension sheet for the quote and reception checks. See the flatbed tarp size guide.

What must be on the written spec

  • Material and finished coated fabric weight per area
  • Flat dimensions and drop against the measured load
  • Grommet and D-ring counts, listed separately
  • Rows, spacing and offsets from named edges
  • Hardware supports, hems and corner reinforcement on the approved sample
  • Panel seams and agreed material or assembly test evidence
A fixing detail to agree before production One conceptual D-ring attachment with a support tab or webbing sewn to coated base fabric. Labels identify the base fabric, support, stitching and ring. The drawing does not predict a failure or establish the strength of the assembly. Fixing detail to agree Coated base fabric Support tab / webbing Stitching: confirm pattern D-ring: confirm type and size
Conceptual construction detail, not to scale. Agree the ring, support material, stitching and surrounding reinforcement on the drawing and sample. Dimensions and assembly strength are not shown. Any strength test needs an agreed specimen, direction, method and acceptance threshold.

Published steel tarps sizes

US retail listings, read 2026-08-20. The prices below are market references, not our prices or available stock. Each size links to its source and the specification to confirm before a custom order.

Format Drop Fabric Published price Details
16 x 27 ft, 4 ft drop 4 ft 18 oz 274.99 USD View 16 x 27 ft, 4 ft drop →
20 x 18 ft, 6 ft drop 6 ft 18 oz 287.99 USD View 20 x 18 ft, 6 ft drop →
24 x 18 ft, 8 ft drop 8 ft 18 oz 324.99 USD View 24 x 18 ft, 8 ft drop →

Formats and prices published by US retailers, read on 2026-08-20, and shown as market reference: we hold none of them in stock. Factories cut custom dimensions to order. We quote only against a written dimension sheet: flat size, drop and flap placement. A missing dimension gets asked, never filled in.

US retail price anchors

WhatPublished priceSource
16x27, 4 ft drop 268.95 USD N2 · Tarps Now, 2026-08-16
16x27 274.99 USD N2 · US Cargo Control, 2026-08-16

Anchors for budgeting, read on 2026-08-16. They are published US retail prices, not our quotes: a sourcing quote depends on spec, quantity, freight and duty, and is documented in writing.

A hardware count needs a location drawing

Two tarps can have the same number of rings in different places. Record the ring type, rows, spacing, corner offsets and reinforcement on the same revision of the drawing used for the quote and reception checks.

Conceptual illustration. You can pause the movement.

Static view: reduced motion is enabled.
Locate each fixing from named edges Illustrative flat-plan excerpt with perimeter grommets drawn as circles and two internal D-ring rows drawn as loops. Edge A is the left edge and edge B is the bottom edge. One ring has an x offset from A and a y offset from B. The drawing is not the published 76-ring layout. Illustrative plan excerpt Edge A Edge B x y Offsets from named edges

Count, position, construction

Circles: perimeter grommets. Loops: D-rings. These are different components; list their counts separately.

x from edge A, y from edge B: a way to locate a fixing without guessing from a photograph. Put units and tolerances on the actual order drawing.

Confirm whether row offsets are measured to the ring centre, its support or another named point. Include the edge and corner details.

A published 16 × 27 ft steel reference lists 76 D-rings and 46 grommets. Those counts identify that product; they do not determine the layout or strength of another tarp.

Illustrative excerpt only, not a complete 76-ring layout, a recommended spacing or an approved production drawing. Listing read October 27, 2026. The layout describes the cover; it does not specify cargo securement.

Which fabric construction should a fleet compare?

Start with the loads, handling routine and service conditions. A fabric weight tells you mass per area; it does not describe every panel, the coating or the seams. Ask whether one fabric is used throughout or different fabrics are used on the top, sides and flap. Compare like constructions before comparing total tarp weight.

Construction to discussWhy a buyer may consider itWhat must be resolved
Coated polyester throughoutA common material basis for flatbed tarp comparisons.Finished coated weight per area, coating, tear and tensile results, seams and handling weight.
Lighter coated fabric throughoutA fleet may seek a lighter piece to handle.Compare test results on the actual proposed fabric; a lighter grade is not an automatic substitute.

N2 market example, read October 27, 2026: US Cargo Control's 16 × 27 ft steel listing describes 18 oz PVC-coated polyester. A lighter construction is an option to investigate against the proposed material's results, not a substitute established by this listing. Neither row confirms availability from us.

Why is “18 oz” different from the weight of a finished tarp?

The fabric number is ounces per square yard. The weight of a completed tarp also includes its area, extra panels, hems, webbing and hardware. Two pieces with the same fabric weight can have different handling weights. Weighing the whole piece cannot establish the fabric's weight per area.

The Trivantage C18403 Super 18 sheet is the dated reference behind the fabric values above. Issued September 6, 2010, it identifies one vinyl-coated polyester and its test methods. These typical values do not establish the properties of another 18 oz fabric or confirm current supply.

What should you request for cold weather or abrasive loads?

Describe temperature exposure and contact surfaces in the request. Ask for the proposed fabric's test method, result and applicable conditions, plus the intended panel and seam construction. A cold-crack value is a result under a test method; it is not a guarantee of every seam or a service-life prediction.

The specification checker starts from the published coated-vinyl reference. If you want another construction, say so in the request and leave its unconfirmed properties open. Use the reception record checklist to decide what evidence will be needed for the agreed specification. No choice here establishes cargo securement or the performance of untested hardware.

Prepare each configuration for ordering and reception

Keep a separate quantity, finished dimension sheet and panel construction for each format or pattern. If you buy sets, state the pieces per set and usable overlap. Published values are references until the proposed material and drawing are confirmed.

What makes a configuration checkable at reception?

Keep your requirement, the supplier's written confirmation and the received batch record separate. Use the same configuration ID and drawing revision throughout.

RequirementWritten confirmationReception record
Top, sides and flapPanel map and proposed fabric for each panelCompare construction with the approved drawing
Finished coated weight per areaUnits, agreed tolerance and representative fabric sampleMeasure the fabric; whole-piece weight is only a screening check
D-rings, grommets, hems and seamsCounts, spacing, reinforcement and seam method for this configurationCount and photograph the agreed layout; any pull test needs an agreed method and acceptance criterion
Finished geometryNamed edges, dimensions, tolerance and drawing revision; coil pattern and openings where applicableMeasure against the agreed drawing
Test propertiesMethod, specimen, conditions and result for the proposed materialA published fabric sheet is not a test report for the received batch

A welded seam description alone does not confirm water performance. Agree the method, acceptance criterion, sampling and evidence before ordering. No default tolerance or acceptance threshold is assumed.

Prepare a purchase brief with one line per configuration.

Questions fleets actually ask

How many D-rings and grommets should a steel tarp carry?

The number depends on the approved pattern. One published US Cargo Control 16x27 steel reference lists 76 D-rings and 46 grommets. Record the counts separately with row positions, spacing, corner offsets and supports. At reception, check the count and location against that drawing; counting alone does not establish assembly strength.

What should be checked when hardware is damaged?

Inspect the fixing, surrounding fabric, support tab or webbing, stitching, edge reinforcement and signs of wear or loading. Practitioner accounts describe fixing-point damage, but do not establish one cause or a frequency ranking. For a destructive test, agree the specimen, direction, method and acceptance threshold first. A reinforced detail by itself does not prove assembly strength or define cargo securement.

Why is a steel tarp's drop shorter than a lumber tarp's?

Steel plate and beams are often lower loads than packaged lumber, but a family name does not fix the drop. The published steel formats on file have different drops, listed in the table above. Use the actual load height and width, and confirm the dimensions on the quote, especially for mixed loads.
